How and when to use High Res Mode and other benefits it offers.

Olympus High Res Mode was first introduced back in 2015 in the E-M5 MK2 and shortly after to the E-M1 Mk2. Since then it has gone through a number of iterations and improvements to the point now with the OM-1 and OM1-MKIIthat we have a High Res 80mp Tripod Mode and 50mp Hand Held Mode that work incredibly well.

WHAT IS HIGH RES MODE?

RESOLUTION OPTIONS

We have various sizes available to use as Jpeg only or Jpeg + Raw:

Raw 80mp Tripod Mode or 50pm Hand Held Mode

Jpeg 80mp Fine, 50mp Fine 25mp Fine

(80mp 10360x7776px, 50mp 8160x6120px, 25mp 5760x4320px

Tripod Mode: Jpeg 80F, 50F and 25F available

Hand Held Mode: 50F and 25F available

*Note that the Jpeg file resolution is independent of the Raw file resolution. For instance shooting High Res in Tripod Mode 25F + Raw, the Raw will still be 80mp, it is just the Jpeg that will be 25mp.

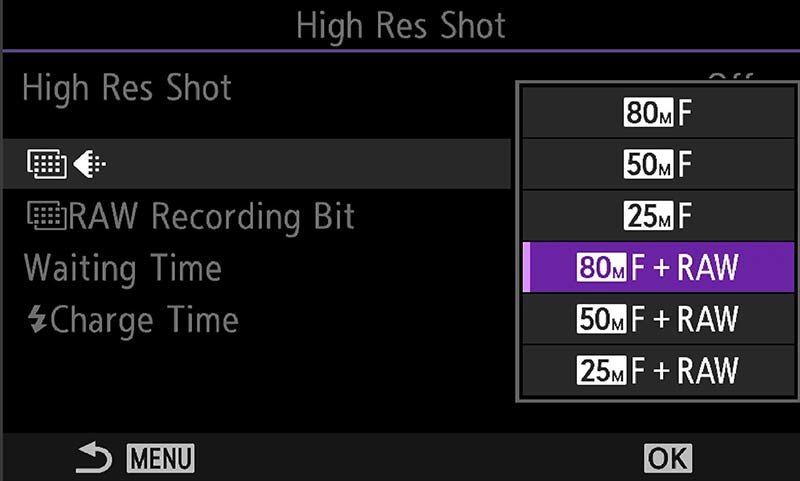

High Res Screen Menu>Camera2>1.Computational> Note the new 12 and 14 Bit options. Waiting Time can be set to delay the shutter if you do not have a cable release. Charge time only applies for flash.

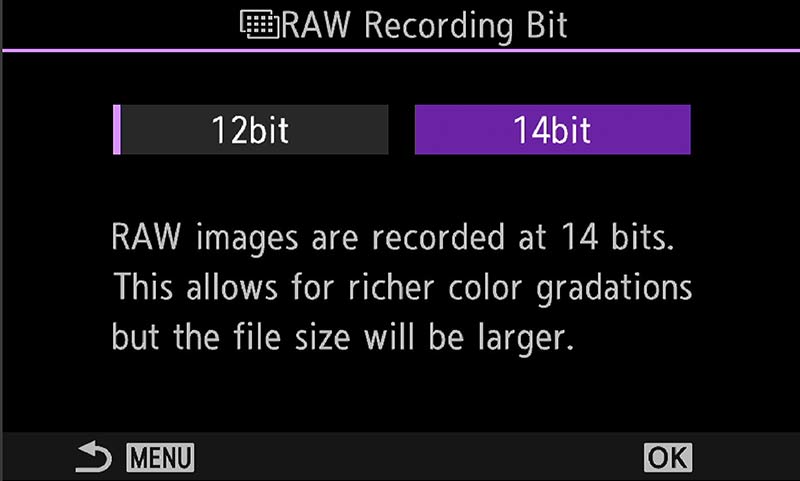

NEW 14 BIT

Now we also have access to the option of 14 Bit as well as the standard 12 Bit. But what does it mean? 14 Bit does increase the amount of information the image file is able to retain; information such as colour and tone. A 12 Bit image is capable of storing 68 billion different tones of colour. A 14-bit image files store up to 4 trillion tones of colour. That is a massive difference. The problem is the human eye can only perceive up to 16.8 Million. Considering the file sizes for High Res 14 Bit are even bigger than 12 Bit (as if they were not big enough already) are we getting any benefit or just bloating the image file? Well, yes and no.

It is true that shooting a High Res in 12 Bit does give better Dynamic Range, around 1.5 stops, and less noise because as the images are combined the processor also looks for and removes noise. And in my tests shooting a normal scene such as the Tarn Hows image below there is no perceivable difference in the colour or the tones rendered to the standard image.

8-25mm @ 8mm f6.3 3 seconds (12×3, 36s exposure time) High Res 14 Bit

Where it can make a difference is when there are very subtle graduations in tone, and when the processing needs to be ‘pushed’ a little more. In this image of Saltwick Bay near Whitby the colours and graduations between them are very subtle and benefitted from 14 Bit. I also took a 12 Bit file and while the colours were definitely not quite as vivid, the processing made them fairly equal. I could detect a slight difference in the graduation of tones. As noted our eyes and computer monitors cannot perceive all of the colours, so print is where it will benefit, especially large prints. I am aware of the irony of trying to demonstrate 14 Bit depth on a website in low resolution,

There is around 15% increase in Raw files sizes, however saving images as Tiffs is around double, (see File Size information). This image is a massive 480MB. The detail in an image dictates the file size, so a minimal image with little detail will be smaller; still, there is a price to pay, and your computer may feel the strain. Storage is cheap though, so my approach from now will be to make sure any image I shoot in High Res that has very subtle tonal graduation as above is definitely 14 Bit.

THE MYSTERIOUS .ORI FILE

Along with the Raw and/or Jpeg files recorded you’ll also see a strange .ori file. This is actually a standard resolution Raw image and is the first frame from the sequence. Previous versions suffered when there was movement in a scene such as water, grass or trees and could result in artefacts resembling a cross hatch pattern. The computational process of High Res would look for this and try to replace artefacts by merging in problem areas from the original file, quite but not always successfully.

Artefacts are largely no longer an issue now although movement still is. But, as multiple images are being combined movement will always be blurred; instead of trying to avoid it I go with it to express the actual scene, blurred grass will express a windy day and moving water will appear as though an ND has been used.

TIP→Olympus Workspace and DXO will recognise the ORI file but Lightroom will not. Change the extension from .ori to .orf and import into your processor and it will be compatible. Rename the file too to avoid conflict, if your Hi Res Raw file is 12345.orf change the Ori to 12345B.orf, 12345original.orf, or anything that makes sense to you.

ACCESSING HIGH RES

We have a dedicated button on the OM1-MKII for High Res which is really useful to enable or disable it. What’s more, to quickly switch between Tripod and Hand Held Mode press/hold the button and turn the front dial.

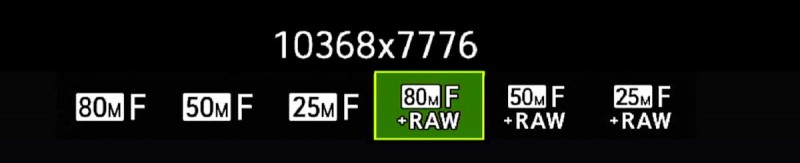

To change quality settings you can use the Menu (save it to My Menu) or on the Super Control Panel select it and the quality settings will show, with the settings available to change for the mode shown.

Note:

When using a tripod it must be stable with no movement. If the camera senses movement the High Res icon will flash to indicate such and taking a shot will be disabled. IS is automatically disabled. Use a shutter release cable or set ‘Wait Time’ as a delay, as Silent Shutter is automatically enabled Self Timer is disabled.

Hand Held does work surprising well, IS Auto is enabled and will be active although you still have to consider how steady you can hold the camera.

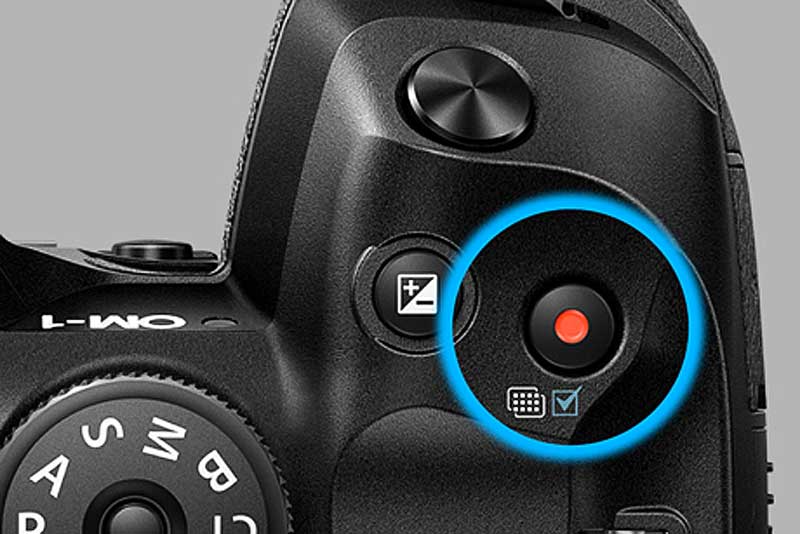

OM-1 High Res Button

Hi Res Quality Setting from Super Control Panel

HIGH RES MODE DETAIL

A closer look at the detail produced by Hi Res Mode.

The image below from Tarn Hows in the Lake District was an obvious candidate for High Res. With the beautiful golden light at sunset side lighting the fells and the Autumn trees there is a great deal of detail in the scene. For this reason I decided to use the 80mp Tripod Mode.

Tarn Hows, Lake District, 80mp High Res Mode, 12-100 Pro

Standard Resolution 20mp

80mp High Res

We can see compared to standard resolution there is additional detail in the High Res image. Both of these images are taken from the High Res file and the standard ORI file with the same processing settings. That is not to suggest standard resolution is inferior, far from it. Remember that to create the High Res the sensor is moved over a number of images taken for each mode 8 for 80mp and 12 for 50mp. The frames are combined, analysed and then stacked into one image hence why it is ‘computational’, but in a sense it is still a 20mp image that has been interpolated.

The standard resolution image still has the detail but in High Res it is more refined and clearer, with less noise, better colour accuracy and increased dynamic range. The standard file will sharpen more to enhance the detail with the consequence of being over-sharpened and creating halos. Don’t expect too much, it is easy to anticipate huge differences with High Res being 4x the size of standard resolution but in actual fact the pixel dimensions (what really matters) is just under twice the size. For online viewing you will not see any difference, where it matters is for larger prints.

Note when processing a High Res Raw image it will look softer and sharpening applied to a standard res image will not be enough. It is much higher resolution and does need more sharpening. Workspace does a better job of sharpening but it is so slow, even only higher end Mac.

Saltwick Bay, Yorkshire, 80mp High Res Mode, 12-100 Pro

Another example from Saltwick Bay taken on a bright sunny day. It is a little bit of a nonsense trying to show the benefit of High Res on a website or small prints. See the crops below. This image is the highest possible quality I can get online and may load a little slower. Even at this resolution there is some very good detail, however the standard image would look just as good.

Standard Resolution 20mp

80mp High Res

Both of the images above are huge crops, around 180%. To make a fair comparison both were cropped to the same area. Considering the perception is our little M4/3 sensors do not have the capability for detail the standard resolution image (the .ORI converted to .ORF) is not bad at all. The High Res image does have more detail, evident in the texture of the cliff and the people in the far distance are more distinct. Compare the crop to the full image for just how far away the cliff and people are. High Res does have an issue with movement, however if the movement is subtle it will be fine. There were two people in the frame, both looking I presume for cockles or fossils, filling plastic bags.

WHEN TO USE HIGH RES MODE

Hi Res Mode is very good for all the reasons above, therefore why not do all shots with it? There are a number of factors to consider, one of the main being file sizes, they are significantly bigger. What is the scene and does it warrant High Res, what benefit is there using it? Another which is harder to define is your intended use, will you produce large prints, or just use online where such high resolutions are redundant? Do you use High Res for every image only to post on Instagram?

I use High Res quite often, but not all the time. I recognise when a scene may benefit from the cleaner detail such as in the example above of Tarn Hows, or when there are creative benefits for longer shutter speeds. Let’s compare the file sizes of 80mp and 50pm High Res Modes, considering that in standard resolution we have 20px.

NOTE – Check the sizes of files for the new 14 Bit Mode. Whilst the Raw files and Jpegs have increased but not so significantly, around 15%, saving a processed image as a Tiff is double the size. An 80mp 12 Bit has increased from 242mb to 483mb for 14 Bit, or thereabouts. That is huge. The lesson here is have plenty of storage.

Given the information above we can see High Res does have a significant impact on files sizes, and therefore storage and the processing power of your computer. An older system with low memory and graphics is really going to struggle, whereas a newer system should handle them well, until you want to browse a catalogue full of High Res images. There is no real answer to ‘When to Use High Res’; perhaps the question is wrong and it should be “What are the Best Situations to use High Res Mode?”

LARGER PRINTS

PPI (Pixels Per Inch) and DPI (Dots Per Inch) are two completely different things and often confused. DPI is the number of dots of ink used in a print and the higher the better quality the print will be, as a standard 300dpi, but this assumes the image has a high enough resolution. Dividing the size of an image in pixels by the print resolution gives the print size. Olympus Standard Resolution 5184 divided by 300dpi would give a print of 17.2″

A 42″ Canvas in a home in the USA.

CROPPING

This image of St Mary’s Lighthouse in Whitley Bay started off life as a portrait orientation. I shoot very often in portrait having a fondness for how lead-in lines can be used but in this case I got it wrong. I imagined the textures of the sand in the foreground adding interest but in hindsight it was just empty space. Luckily I had used 80mp High Res so a crop provided an image of 7776 pixels wide, still higher than a Standard Resolution.

80mp Tripod Mode, 12-100 Pro f7.1 @18mm 8 minute Exp (8x60s)

The reason I used High Res was not to have a larger file or increased resolution, it was to create a long exposure with reduced noise. The exposure was 60 seconds with a 6 stop ND. Over 60 seconds there was virtually no cloud movement, High Res gave the effect of a longer exposure and with much lower noise than an 8 minute exposure with a 10 stop would have in Live Time, if I could have pushed it to 8 minutes. It was pure luck I later decided to change the composition.

CREATING LONGER EXPOSURES

This image of the aptly named ‘Bridge To Nowhere’ in Dunbar, Scotland was a slow shutter image. Arriving just before high tide I waited for the path leading up to the steps to be completely submerged; the lack of detail was important to create the feeling of solitude.

Using a 6 stop ND the exposure was only 4 seconds, which means 4 seconds per 8 frames, a total of 32 seconds. As you can see it produces an effect which looks longer than just 4 seconds, and longer than a 32 second exposure with an ND, and with virtually no noise.

I could have used the Live ND, but the most I would get would have been 8 seconds, and I gained increased detail and textures in the bridge.

High Res Tripod Mode 80mp. 12-100 Pro f6.3 32s Exp (8x4s)

INCREASING DYNAMIC RANGE

This image taken on Holy Island of Lindisfarne Castle at dawn was going to be a challenge because of the light.

I chose to use 80mp Tripod Mode partly because of the light and also because of the textures in the foreground.

With the increase in Dynamic Range I was able to actually under-expose by 2/3rds of a stop to protect the highlights in the sky. As the ground was well illuminated I only had to worry about the shadows, which opened up well enough. With less noise in the file and using LR AI Noise reduction there was virtually no noise even after opening the shadows.

80mp Tripod Mode 8-25mm Pro @8mm f7.1 48s Exp (8x6s)

80mp Tripod Mode 12-100 Pro f7.1 2s Exp (8×1/40)

50mp Hand Held Mode 12-100 Pro @60mm f6.3 (12×1/13s Exp)

50mp Hand Held Mode 12-100 Pro @26mm f6.3 7s Exp (12×0.6s Exp) Focus Bracketed manually 2 stops and blended in Photoshop.

80mp Tripod Mode 12-100 Pro f7.1 @40mm 160s Exp (8×20 Exp)

50mp Hand Held Mode 12-100 Pro @50mm f5.6 1.2s Exp (12×1/100 Exp)

80mp Tripod Mode 12-100 Pro @7mm f6.3 80s Exp (8x10s)

80mp Tripod Mode 7-14 Pro @10mm f6.3 16s Exp (8x2s Exp)

CONCLUSION

High Res Mode is not just for increased detail in images, we have seen there are other benefits such as better dynamic range and lower noise. Deciding when to use High Res is personal choice and if you feel you will benefit from it. It is certainly a great feature to have and one I use often.
